4-cylinder TDI engine with power steering and A/C compressor through 04.99, assembly
WARNING: This page is about a different variant/trim than selected.

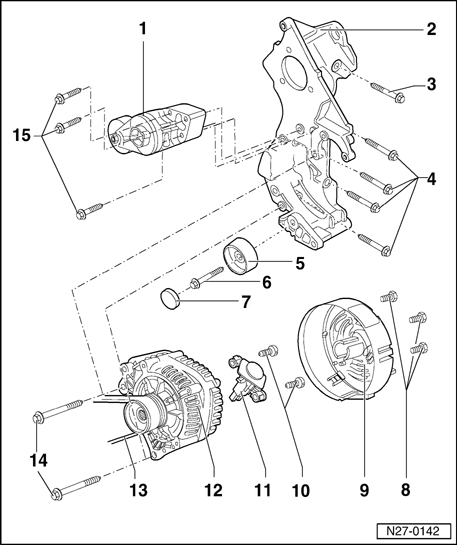

Fig 1: Exploded View Of 4-Cylinder TDI Engine Generator With Power Steering & A/C Compressor (Through 04.99)
1 - Tensioner
2 - Bracket
3 - Hex bolt
- M10 x 45mm
- 45 Nm
4 - Hex bolts
- M10 x 65mm
- 45 Nm
5 - Relay roller
6 - Hex bolt
- M8 x 50mm
- 25 Nm
7 - Relay roller protective cap
Fig 2: Exploded View Of 4-Cylinder TDI Engine Generator With Power Steering & A/C Compressor (Through 04.99)
8 - Hex bolts
- M3 x 18mm
9 - Protective cap
10 - Screws
- M4 x 25mm
11 - Voltage Regulator (VR)
- Removing and installing.
- Checking carbon brushes. Refer to Generator (GEN) carbon brushes, checking
12 - Generator (GEN)
- Tightening torque of B+ wire to generator. Refer to Generator (GEN) B+ & D+ connections, securing
13 - Ribbed belt
- Removing and installing. Refer to Ribbed belt, removing and installing
- Ribbed belt routing. Refer to Ribbed belt, routing
14 - Hex bolts
- M8 x 85mm
- 25 Nm
15 - Hex bolts
- M8 x 45mm
- 25 Nm
