Front backrest heating element, removing and installing: Removing

• Remove seat → Front seats, removing and installing  .
• Remove backrest → Front backrest, removing and installing  .
• Remove backrest cover → Front backrest cover and upholstery, removing and installing  .
• Disconnect harness connector - 5  -.

• Guide cable - 1  - through opening - 2  - in center part of cushion - 3  - and remove heating element - 4  -.

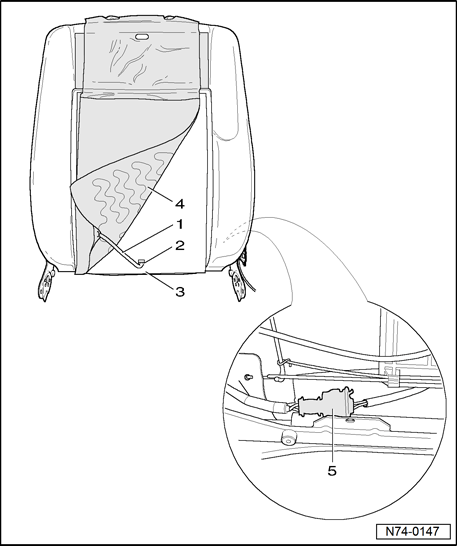

Fig 1: Guiding Cable Through Opening In Center Part Of Cushion

Courtesy of VOLKSWAGEN UNITED STATES, INC.
