Cover and cushion for backrest, removing and installing: Removing

• Remove headrests.
• Remove right backrest → Backrest, removing and installing  .
• Remove center arm rest → Center armrest, removing and installing  .
• Pull out three clips - 2  -.

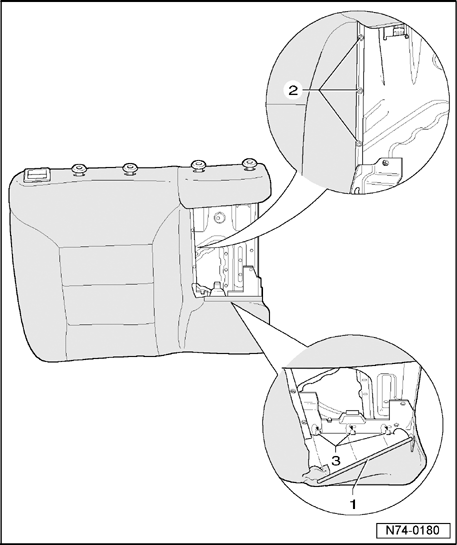

Fig 1: Backrest Beading, Locking Hooks And Clips

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove beading - 1  - from locking hooks - 3  -.

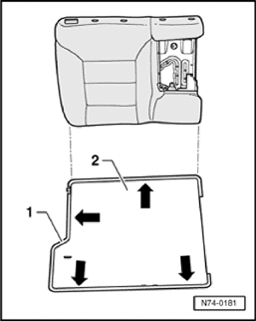

Fig 2: Pulling Up Cover All Around And Removing From Backrest Frame

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Pull up cover - 1  - all around and remove from backrest frame - 2  - - arrows  -.
• Remove cover - 1  - and cushion - 2  - from backrest frame - 3  -.
• Detach tension wire - 4  - and upholstery wire - 5  - - arrows  -.

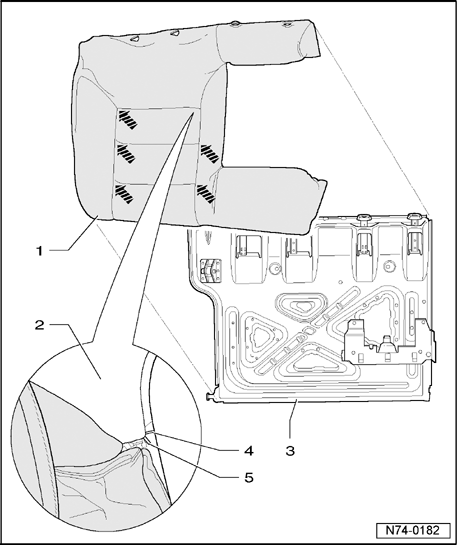

Fig 3: Backrest Cover And Cushion

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove cover - 1  - from cushion - 2  -.
