Right backrest lock, removing and installing: Installing

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Circlip, Pin, Spring And Locking Hook
GW00003885Courtesy of VOLKSWAGEN UNITED STATES, INC.

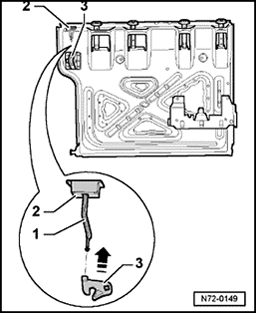

Fig 2: Pressing Rod For Handle Out Of Locking Hook
GW00003883Courtesy of VOLKSWAGEN UNITED STATES, INC.
