Center armrest, removing and installing: Removing

WARNING: This page is about a different variant/trim than selected.

Remove right backrest → Backrest, removing and installing .
Fold down center armrest - 1 -.
Remove trim - 2 - - arrow A -.
Loosen trim - 2 - from cover - 3 - at top.

Loosen trim - 2 - from catch - 4 - using a screwdriver and pull out upward.

Remove center armrest - 1 - from backrest.

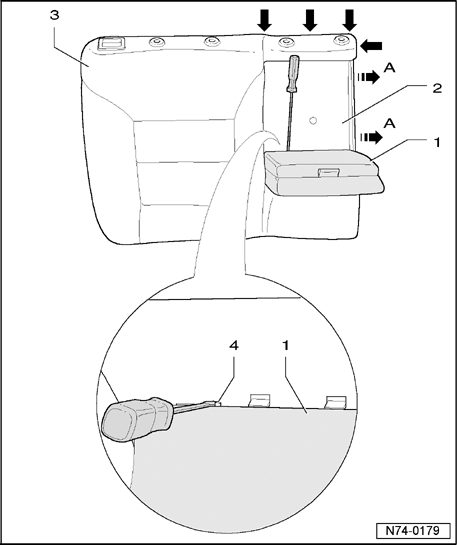

Fig 1: Center Armrest Remove/Install Components

GW00003882

Courtesy of VOLKSWAGEN UNITED STATES, INC.
