Seat height adjusting element, removing and installing: Removing

• Remove seat → Front seats, removing and installing  .

NOTE:

• Before removing, seat must be brought to highest position in order to release tension on tension springs for height adjustment to the greatest extent.

• Remove bolt - 2  - and unclip trim - 1  -.
• Unclip two cover caps - 11  - , remove two bolts - 12  - and remove adjusting lever - 13  -.

• Remove bolt - 17  - and unclip trim - 14  -.

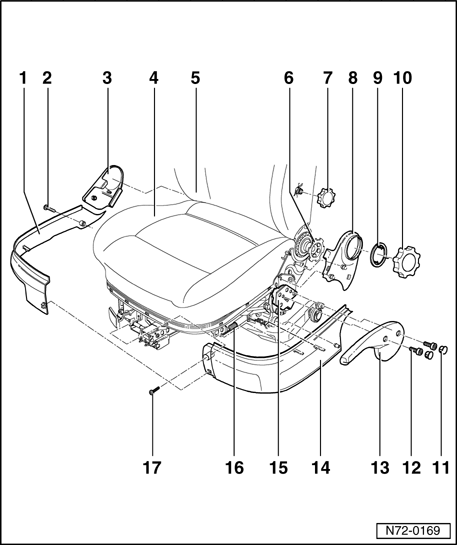

Fig 1: Front Seat Assembly Overview (2-Door)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Carefully unhook tension spring - 2  -.

• Unscrew three bolts - arrows  - (10 Nm) and pull seat height adjusting element - 1  - out of seat frame.

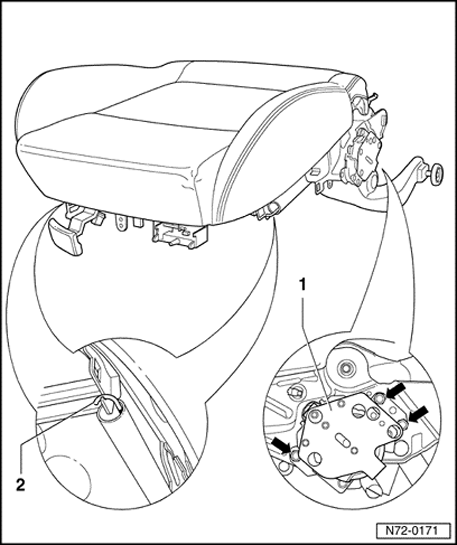

Fig 2: Seat Height Adjusting Element And Three Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.
