Lumbar support, removing and installing: Removing
WARNING: This page is about a different variant/trim than selected.
- Remove headrest guides → Headrest guides, removing and installing .
- Remove seat → Front seats, removing and installing .
- Remove backrest → Front backrest, removing and installing .
- Unclip trim on rear side at bottom and unhook upward.

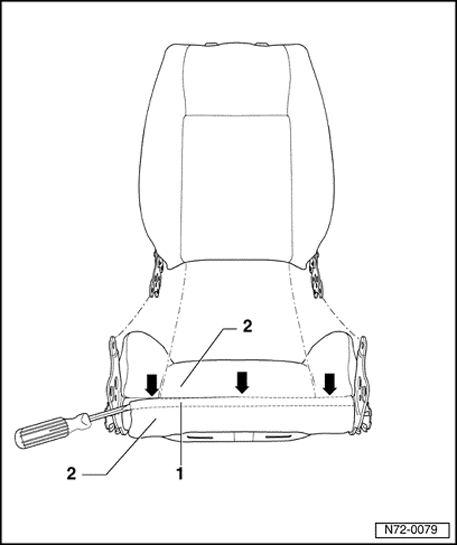

- Separate beading strip - 1 - for cover - 2 - using a screwdriver - arrows -.
- Unhook tension wire - 1 - - arrows -.

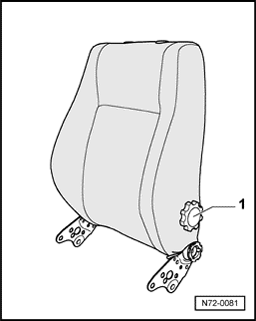

- Pry off adjusting knob - 1 -.
- Slide cover - 1 - up and unscrew bolts - 4 - for lumbar adjustment - 2 -.
- Pull off lumbar adjustment - 2 - from backrest frame - 3 -.
- Unclip lumbar support - 1 - - arrows - and remove from backrest frame.
