Front backrest, removing and installing: Removing

WARNING: This page is about a different variant/trim than selected.

Fig 1: Belt Latch

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Unscrew belt latch - 1 -.
Pull off adjusting knob - 7 -.
Unclip two cover caps - 10 - , remove two bolts - 9 - and remove adjusting lever - 8 -.
Remove trim - 1 -.

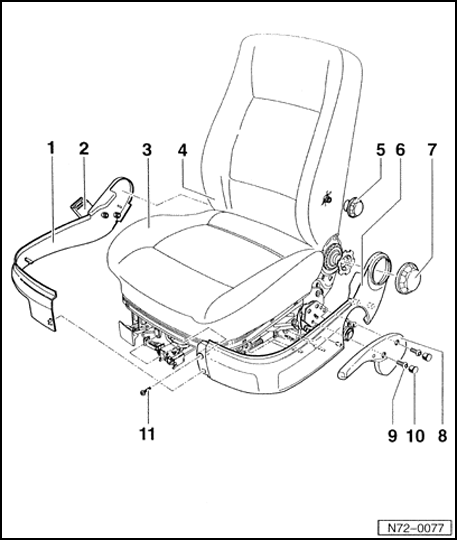

Fig 2: Front Seat Assembly Overview (4-Door)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 3: Backrest Heater Harness Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect harness connector - 1 - for backrest heater, and if necessary, remove wiring harness for backrest heater by removing seat height adjusting element from seat frame → Seat height adjusting element, removing and installing .

Fig 4: Backrest Fitting Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

In 2-door vehicles, backrest is secured to seat pan with only two fitting bolts (24 Nm).
