Cable for locking backrest, assembly overview (2-door)

WARNING: This page is about a different variant/trim than selected.

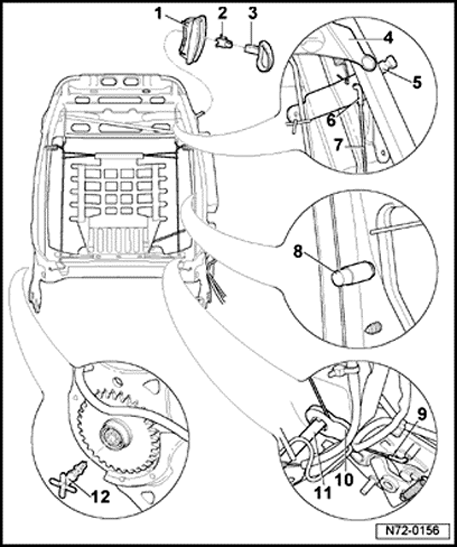

Fig 1: Cable For Locking Backrest Assembly Overview (2-Door)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cover

2 - Clip

3 - Grip

4 - Backrest frame

5 - Locking lever

6 - Upper cable hook

7 - Cable

8 - Center cable guide

9 - Lower cable hook

10 - Lower cable guide

11 - Transfer rod

12 - Locking sleeve
