8-way seat trim, removing and installing: Removing

WARNING: This page is about a different variant/trim than selected.

Remove seat → Front seats, removing and installing .
Remove belt latch → Front backrest, removing and installing .
Unclip cover cap - 1 - and remove screw - 2 -.
Unclip right seat trim - 3 -.

Remove bolts - 3 - and - 4 -.
Disconnect harness connector - 6 -.

Unclip left seat trim - 7 -.

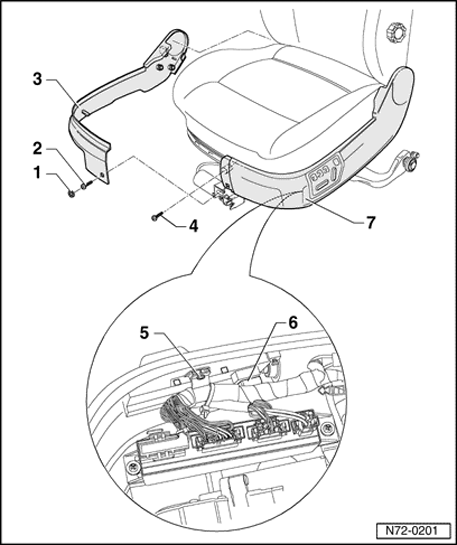

Fig 1: 8-Way Seat Trim Removal/Install Components

GW00003871

Courtesy of VOLKSWAGEN UNITED STATES, INC.
