8-way seat front height adjustment drive, removing and installing: Removing

WARNING: This page is about a different variant/trim than selected.

Remove seat → Front seats, removing and installing .
Using a screwdriver, disconnect harness connector - 1 - in - direction of arrow -.
Remove three bolts - 3 -.

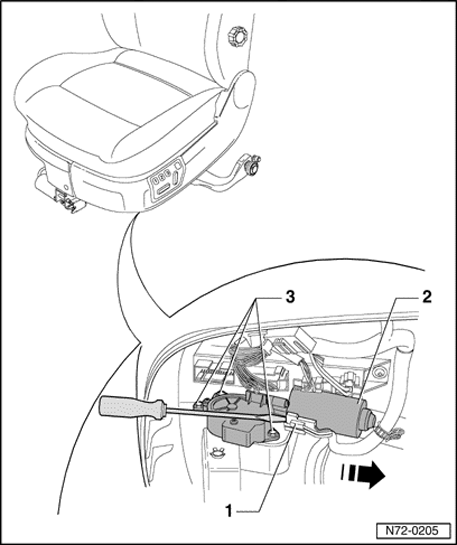

Fig 1: 8-Way Seat Front Height Adjustment Drive Removal/Installing Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.
