8-way seat control module, removing and installing: Removing

WARNING: This page is about a different variant/trim than selected.

Remove seat → Front seats, removing and installing .
Disconnect four harness connectors - arrows -.
Remove bolts - 1 - and - 2 -.

Remove control module - 3 -.

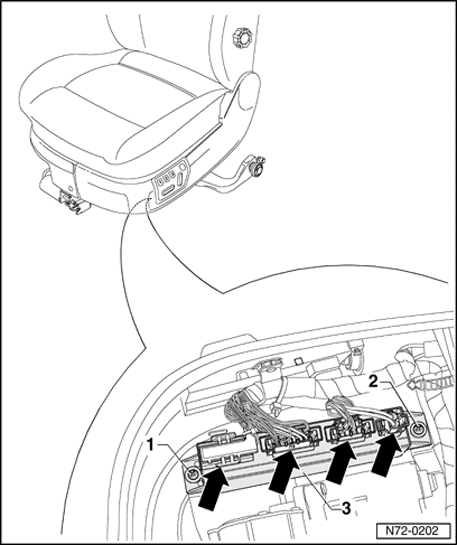

Fig 1: 8-Way Seat Control Module Removal/Install Components

GW00003872

Courtesy of VOLKSWAGEN UNITED STATES, INC.
