8-way seat backrest adjustment drive, removing and installing: Removing
WARNING: This page is about a different variant/trim than selected.
- Remove seat → Front seats, removing and installing .
- Remove 8-way seat trim → 8-way seat trim, removing and installing .
- Remove cover in lower area of backrest and roll up → Front backrest cover and upholstery, removing and installing .

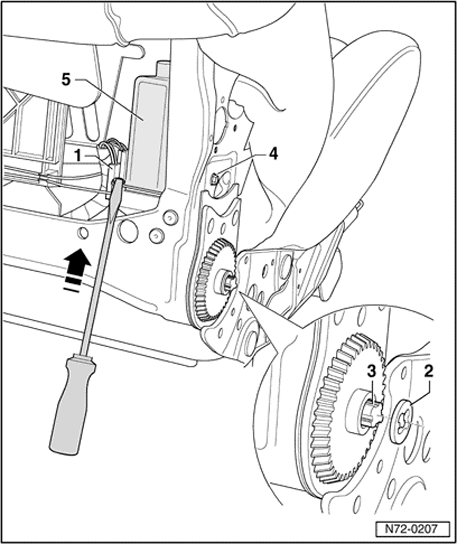

- Using a screwdriver, disconnect harness connector - 1 - in - direction of arrow -.
- Pry out locking washer - 2 - from shaft - 3 - using a screwdriver.
- Drive the shaft - 3 - approx. 15 cm into backrest frame using hammer and drift.
- Unscrew nut - 4 -.
- Remove drive - 5 -.
