Upper rear lid trim, removing and installing (Golf): Removing

• Remove lower rear lid trim → Lower rear lid trim, removing and installing (Golf)  .
• At right and left sides, pull out spreader pin - 1  - from rear shelf bracket - 2  -.
• Using wedge T10039/1 , pry trim at the sides out of mounts in lid - arrow A  -.
• Using Wedge T10039 , pry trim at upper edge out of mounts - arrow B  -.

NOTE:

• Before installing, check securing clips for damage and replace if necessary.

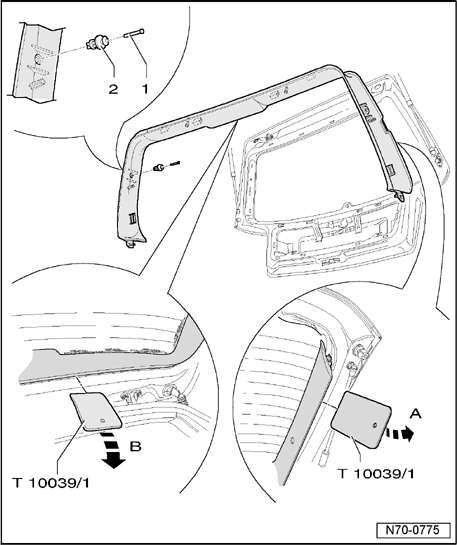

Fig 1: Upper Rear Lid Trim Removal/Install components (Golf)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
