Upper rear lid trim, assembly overview (Golf)

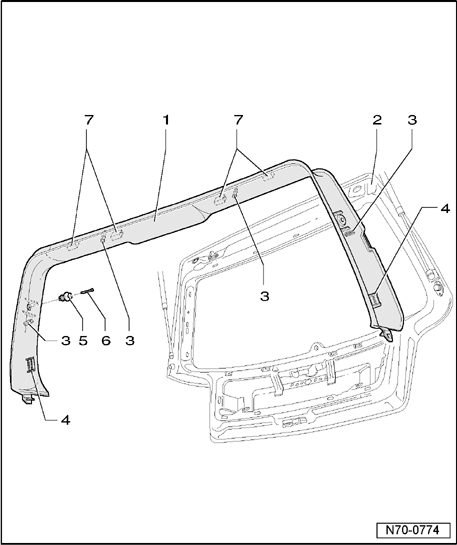

Fig 1: Upper Rear Lid Trim Assembly Overview (Golf)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Upper trim

• Removing → Upper rear lid trim, removing and installing (Golf)

2 - Rear lid

3 - Guide pin

• Qty. 4

4 - Securing clips

• Qty. 2

5 - Bracket for rear shelf

• Qty. 2
• Left and right

6 - Spreader pins for bracket

• Qty. 2
• Left and right

7 - Clamps

• Qty. 4
