Trunk escape handle, removing and installing

Removing

• Unclip up clip - 6  - and release cable - arrow  -
• Clamping washer - 1  -

• Qty. 6

• Remove frame - 2  -
• Remove handle support - 4  - from rear lid trim.
• Release escape handle - 5  - from handle support - 4  -.

Installing

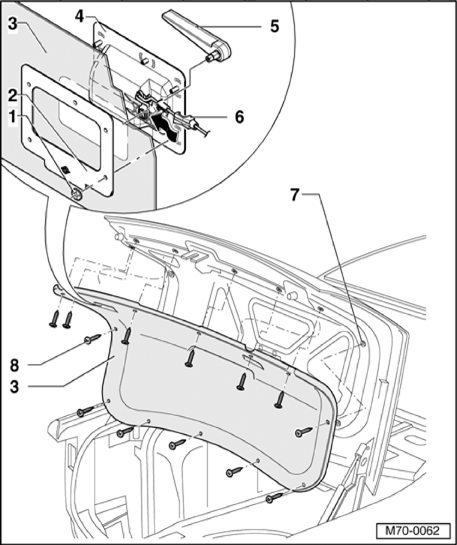

Fig 1: Trunk Escape Handle Removal/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install in reverse order of removal.
