Rear lid trim, removing and installing (Jetta): Installing

WARNING: This page is about a different variant/trim than selected.

Check expanding nuts - 3 - , replace if necessary and insert into holes of lid.
Place trim - 2 - in installation position and bolt firmly.
Insert bracket for warning triangle and bolt firmly.
Insert warning triangle into bracket.

Fold bracket closed and bolt down locking mechanism.

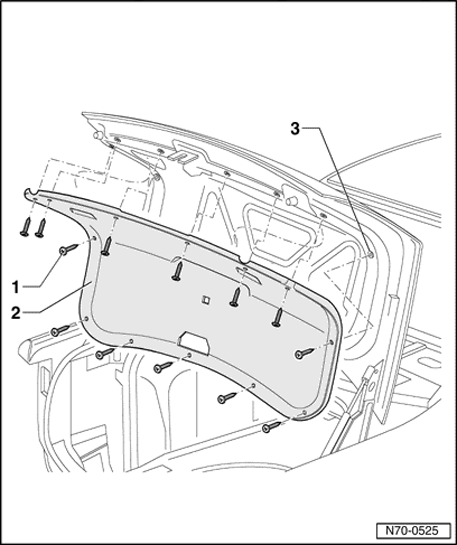

Fig 1: Rear Lid Trim And Bolts (Jetta)

GW00003842

Courtesy of VOLKSWAGEN UNITED STATES, INC.
