Lower rear lid trim, removing and installing (Golf): Removing

• Remove the two bolts - 1  - in the grip depression.
• Slide wedge T10039/1 between trim - 2  - and lid - 3  -.
• Pry trim out of mountings in rear lid. Start from lower edge of rear lid.

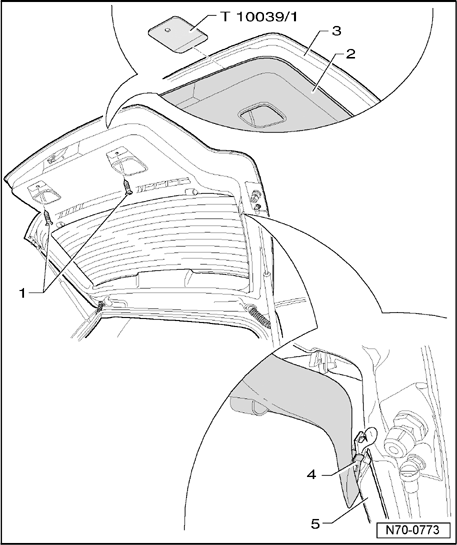

Fig 1: Lower Rear Lid Trim Removal/Install (Golf)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove side straps - 4  - from upper trim - 5  -.

Fig 2: Lower Rear Lid Trim Removal/Install (Golf)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
