Lower rear lid trim, assembly overview (Golf)

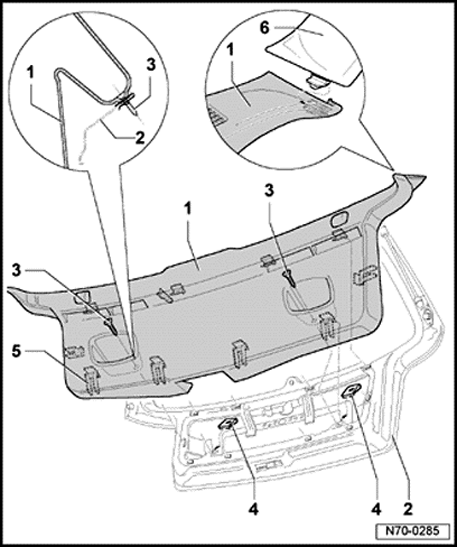

Fig 1: Lower Rear Lid Trim Assembly Overview (Golf)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Lower trim

• Removing → Lower rear lid trim, removing and installing (Golf)

2 - Rear lid

3 - Bolts

• Qty. 2

4 - Metal nuts

• Qty. 2

5 - Clamps

• Qty. 10

6 - Upper trim
