Upper B-pillar trim, removing and installing (Vehicles with side curtain protection 04.01): Installing

CAUTION: For safety reasons, steel clip - 1  - must be replaced after each removal and installation of B-pillar trim - 2  -.

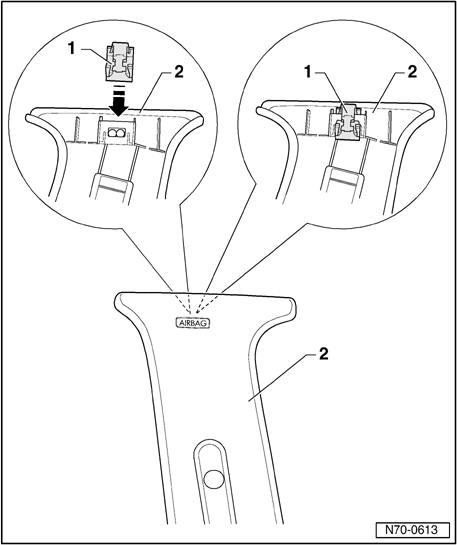

Fig 1: Inserting Steel Clip In B-Pillar Trim

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Insert steel clip - 1  - in B-pillar trim - 2  - - arrow  -.

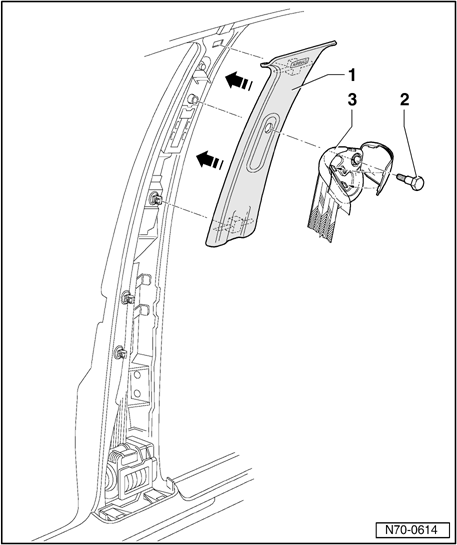

Fig 2: Inserting Steel Clip In B-Pillar Trim

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Clip trim - 1  - to B-pillar - arrows  -.
• Bolt belt relay - 3  - with bolt - 2  - (40 Nm) to B-pillar.

Fig 3: Installing Upper B-Pillar Trim (Vehicles With Side Curtain Protection 04.01)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Install lower B-pillar trim → Lower B-pillar trim, removing and installing  .

Fig 4: Installing Upper B-Pillar Trim (Vehicles With Side Curtain Protection 04.01)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
