Side trim, assembly overview (Golf 2- door)

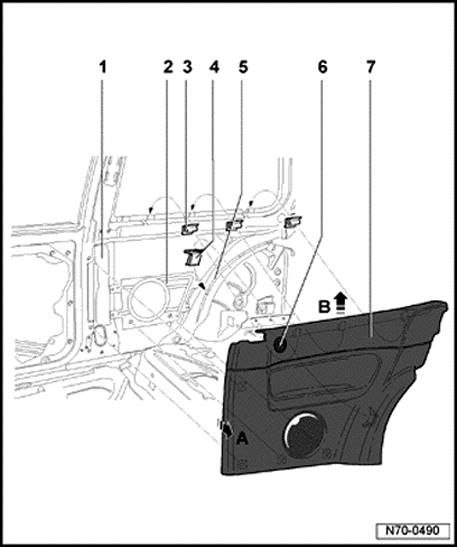

Fig 1: Side Trim Assembly Overview (Golf 2- Door)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - B-pillar

2 - Holder for loudspeaker

3 - Clip

• Qty. 3

4 - Clip

• For body flange

5 - Body flange

6 - Loudspeaker

7 - Side trim

• Removing → Side trim, removing and installing (Golf 2- door)
