Right luggage compartment side trim, assembly overview (Golf wagon/Jetta wagon)

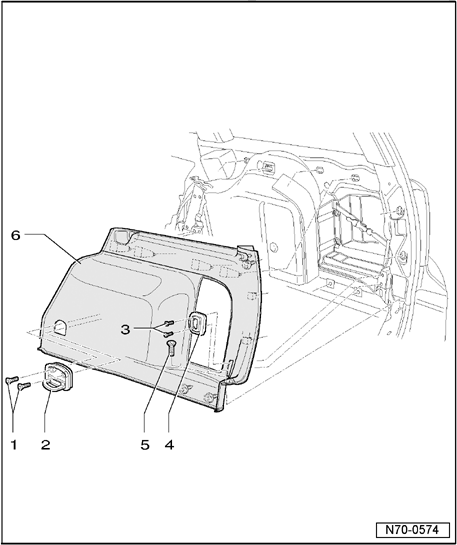

Fig 1: Right Luggage Compartment Side Trim Assembly Overview (Golf Wagon/Jetta Wagon)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bolts

2 - Tie-down

3 - Bolts

4 - Tie-down

5 - Screw

6 - Luggage compartment trim

• Removing → Right luggage compartment side trim, removing and installing (Golf wagon/Jetta wagon)
