Luggage compartment cover support, assembly overview (Golf)

WARNING: This page is about a different variant/trim than selected.

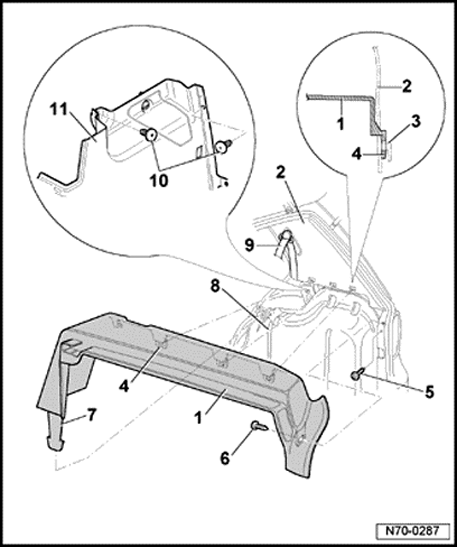

Fig 1: Luggage Compartment Cover Support Assembly Overview (Golf)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Support, luggage compartment cover

2 - C-pillar trim

3 - Locking lug on C-pillar

4 - Hook on support

5 - Screw

6 - Screw

7 - Locking pin

8 - Wheel housing

9 - Seat belt

10 - Clips

11 - Luggage compartment trim
