LATCH System "Lower Anchors and Tethers for CHildren", installing and retrofitting

WARNING: This page is about a different variant/trim than selected.

LATCH, definition

LATCH system for "Lower Anchors and Tethers for CHildren" consists of combination of rear upper tethers and rear lower anchors used to secure a child restraint.

Vehicles with production date 09.00 (09/00) and later (see certification label on driver side B-pillar - arrow - ) are provided with guidance fixtures and must be checked for installation during Pre-Delivery Inspection (PDI).

Fig 1: Locating Certification Label On Driver Side B-Pillar

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Refer to LATCH system description and usage instructions. → Owners Manual.

Vehicles manufactured as of January 2001 are equipped with buttons (at arrows) to identify rear lower anchor points.

NOTE:

LATCH Guidance Fixtures announced in Technical Bulletins Group 00 Number 00-06 and 00-07) are no longer required or supplied on vehicles equipped with buttons.

Rear shelf (Jetta)

Installation:

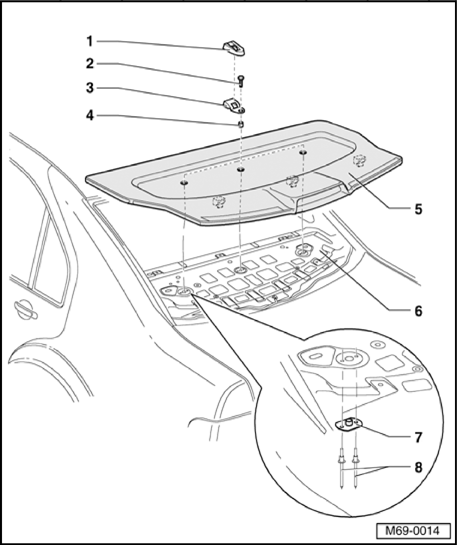

Fig 2: LATCH System Installing/Retrofitting Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cap

Qty. 1

2 - Hex bolt

Qty. 1
Tightening torque: 23 Nm.

3 - Bracket

Qty. 1

4 - Spacer

Qty. 1

5 - Rear shelf

Removing and installing
Holes for anchorage points are pre-drilled (3 locations) and covered by rear shelf.
Locate pre-drilled holes and cut material off in circular shape to allow installation of anchorage components.

6 - Rear shelf sheet metal

With pre-drilled holes for anchorage points.

7 - Washer nut

Qty. 1
Install from below.

8 - Rivet

Two for washer nut - 7 -.
Install from below.

Fig 3: Rear Top Tether Strap Attached To Anchor In A Sedan Mode

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Illustration shows rear top tether strap attached to anchor in a sedan model.

Rear shelf (Jetta Wagon)

Fig 4: Approximate Locations For Rear Top Tether Anchorage Points For Jetta Wagon

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Illustration shows approximate locations for rear top tether anchorage points for Jetta Wagon.

NOTE:

Inside anchors are not recommended for attaching rear lower anchors of a LATCH seat in middle position. three-point lap/shoulder belt should be used.

Rear shelf (Golf)

Fig 5: Approximate Locations For Rear Top Tether Anchorage Points For Jetta Wagon

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Illustration shows approximate locations for rear top tether anchorage points for Golf.

NOTE:

For MY 1999 vehicles only, rear top tethers are not installed in seatback. Vehicles for this model year may require a seatback change for rear top tether installation.

Rear lower anchors (Golf)

NOTE:

Inside anchors are not recommended for attaching rear lower anchors of a LATCH seat in middle position. three-point lap/shoulder belt should be used.
