Rear ashtray, assembly overview

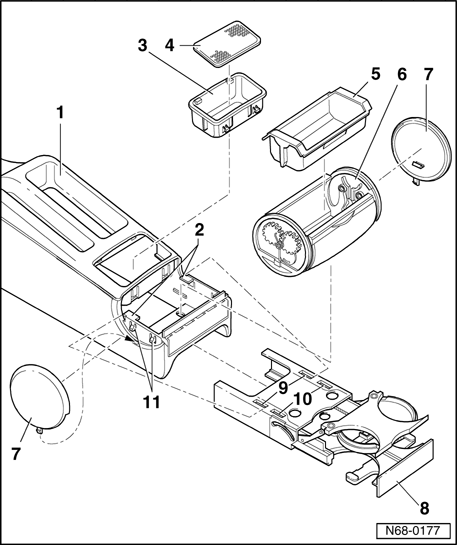

Fig 1: Exploded View Of Rear Ashtray

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Center console extension

2 - Retaining tabs

3 - Storage compartment

• Not in front armrest

4 - Storage compartment mat

• Not in front armrest

5 - Ashtray insert

6 - Ashtray

7 - Cover caps

• Qty. 2

8 - Cup holder

9 - Catches

• Located in front of retaining tabs - 2  -

10 - Catches

• Behind retaining tabs - 2  -

11 - Locking lugs
