Center console, assembly overview

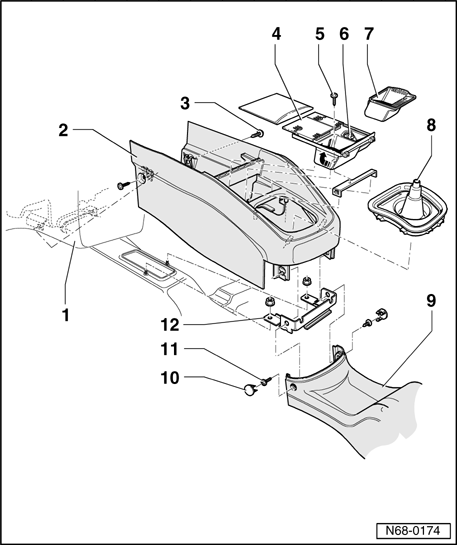

Fig 1: Center Console Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Steering column trim

2 - Center console

• Removing → Center console, removing and installing

3 - Bolts

• Qty. 2

4 - Ashtray

5 - Screw

6 - Cigarette lighter

7 - Ashtray insert

8 - Boot

9 - Center console extension

• Removing → Center console extension, removing and installing

10 - Cover caps

• Qty. 2

11 - Bolts

• Qty. 2

12 - Mounting bracket
