Center console extension, assembly overview

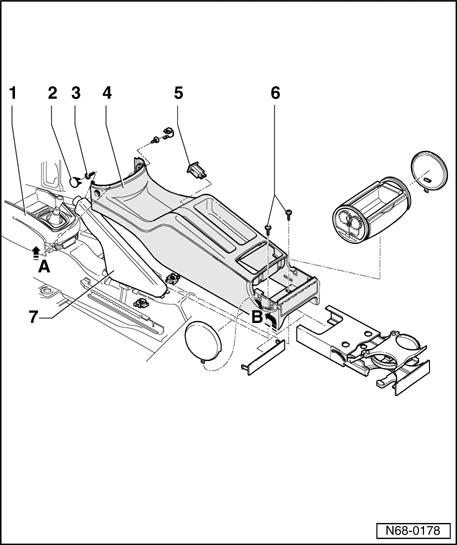

Fig 1: Center Console Extension Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Center console

• Removing → Center console, removing and installing

2 - Cover caps

• Qty. 2

3 - Bolts

• Qty. 2

4 - Center console extension

• Removing → Center console extension, removing and installing

5 - Fuel flap switch

6 - Bolts

• Qty. 2

7 - Parking brake lever
