Sill panel trim (Golf 4-door), assembly overview

WARNING: This page is about a different variant/trim than selected.

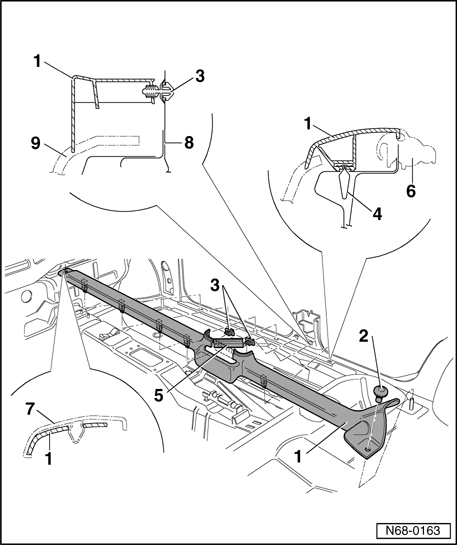

Fig 1: Sill Panel Trim Assembly Overview (Golf 4-Door)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Sill panel trim

2 - Press button

3 - Securing clips

4 - Retaining clips

5 - Tab

6 - Door seal

7 - A-pillar trim

8 - Sill

9 - Carpet
