Sill panel trim (Golf 2-door), assembly overview

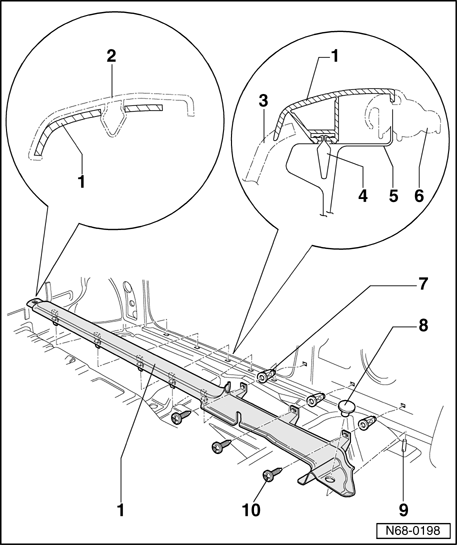

Fig 1: Assembly Overview Sill Panel Trim (Golf 2-Door)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Sill panel trim

2 - Lower A-pillar trim panel

3 - Carpet

4 - Retaining clamp

5 - Sill

6 - Door seal

7 - Spreader nut

• Qty. 3

8 - Press button

9 - Threaded pin

10 - Screw

• Qty. 3
