Protective side moldings, replacing

• Heat side protective molding using hot air gun before removing.
• Clean outer panel with mineral spirits, treat with silicone remover and rub dry.
• Remove protective foil, attach side protective molding and press on forcefully. Processing temperature approx. 68 ° F (20 ° C).

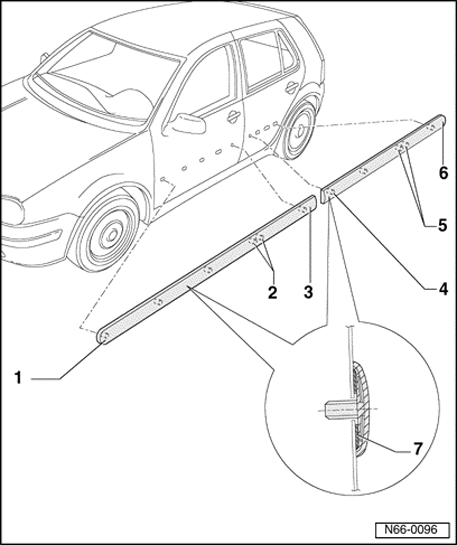

Fig 1: Identifying Protective Side Moldings

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front door protective molding

• Left and right protective molding have a different hole pattern
• Self adhering
• Material PP/EPDM

2 - Pins

• Stop twisting of molding

3 - Centering pins

4 - Centering pins

5 - Pins

• Stop twisting of molding

6 - Rear door protective molding

• Left and right protective molding have a different hole pattern
• Self adhering
• Material PP/EPDM

7 - Protective foil
