Side window (Wagon), assembly overview

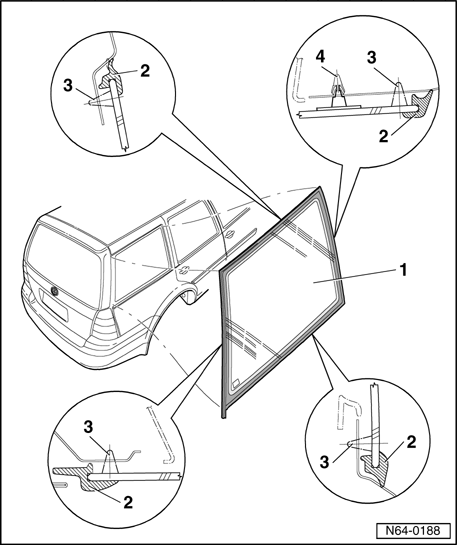

Fig 1: Identifying Side Window (Wagon) Assembly Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Side window

• Remove side window. Refer to Undamaged side window, removing
• Installing side window. Refer to Side window, installing
• Side window has no pre-coating

2 - Seal with spacer (component of window)

3 - PUR adhesive sealant

• Bead cross section:
• Width = 8 mm
• Height = 12 mm (including residual material on window glass and window flange)
• Minimum curing time. Refer to Minimum curing time

4 - Securing pin

• Two pieces
• They secure side window between rear door and rear lid
• When using old window, it is installed without securing pins
