Side window (Golf), assembly overview

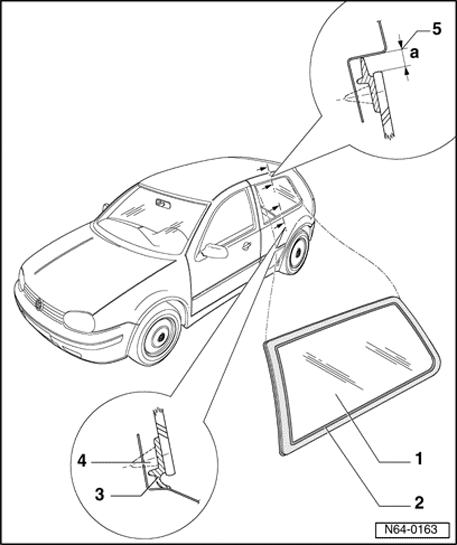

Fig 1: Identifying Side window (Golf)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Side window

• Remove side window. Refer to Undamaged side window, removing
• Installing side window. Refer to Side window, installing

2 - Ceramic coating

3 - Sealing lip (component part of pre-coating)

4 - PUR adhesive sealant

• Bead cross section:
• Width = 7 mm
• Height = 11 mm (including pre-coating, residual material on window glass and window flange)
• Minimum curing time. Refer to Minimum curing time

5 - Gap dimension - a - = 56 mm

• Gap dimension must be maintained since distance is necessary for securing roof base carrier
