Rear window (Jetta), assembly overview

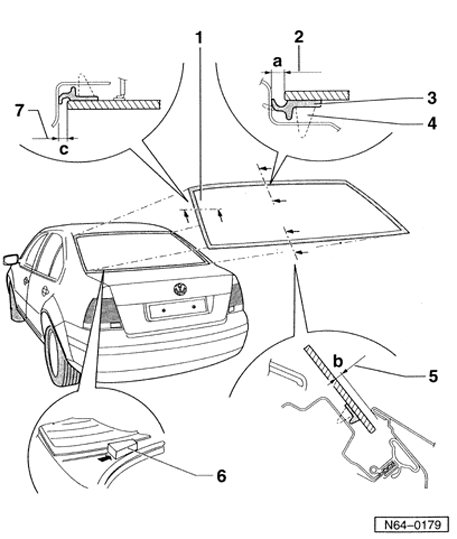

Fig 1: Identifying Rear Window (Jetta) Assembly Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rear window

• Removing rear window. Refer to Undamaged rear window, removing
• Installing rear window. Refer to Rear window, installing

2 - Gap dimension - a - = 3 mm

3 - Sealing lip (component part of pre-coating)

4 - PUR adhesive sealant

• Bead cross section:
• Width = 7 mm
• Height = 11 mm (including pre-coating, residual material on window glass and window flange)
• Minimum curing time. Refer to Minimum curing time

5 - Gap dimension - b - = 6.  5 mm

• Check gap dimension using Adjustment gauge 3371

6 - Window adjuster

• 443,845,631 A

7 - Gap dimension - c - = 3 mm
