Plenum chamber cover, removing and installing: Removing

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Plenum Chamber Seal, Bolts & Pollen Filter Cover

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 2: Caution: Do Not Pry Plenum Chamber Off Using Tool

Courtesy of VOLKSWAGEN UNITED STATES, INC.

CAUTION:

Plenum chamber cover must not be pried off using a tool (screwdriver, wedge). Window will be damaged and may crack later.

Fig 3: Lifting Plenum Chamber Cover At Windshield Edge

Courtesy of VOLKSWAGEN UNITED STATES, INC.

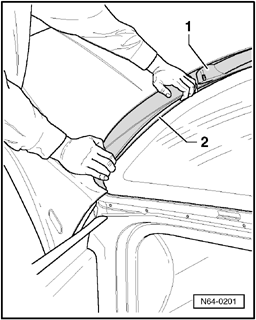

Fig 4: Pulling Out Plenum Chamber Cover

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Now pull out plenum chamber cover - 1 - starting from windshield edge at right angle out of mounting slit at lower edge of windshield - 2 -.
