Plenum chamber cover, removing and installing: Installing

WARNING: This page is about a different variant/trim than selected.

Fig 1: Caution: Do Not Strike Plenum Chamber Cover

Courtesy of VOLKSWAGEN UNITED STATES, INC.

CAUTION:

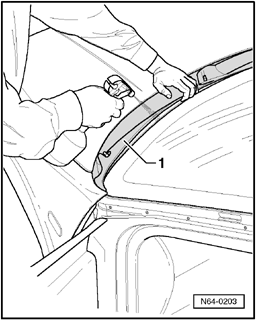

Fig 2: Spraying Plenum Chamber Cover In Mounting Slots With A Soapy Solution

Courtesy of VOLKSWAGEN UNITED STATES, INC.

To ease installation of plenum chamber cover in mounting slots - 1 - , area should be sprayed with a soapy solution.

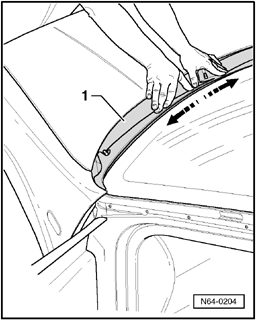

Fig 3: Pressing Plenum Chamber Cover In Mounting Slots

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press plenum chamber cover - 1 - in mounting slots, starting from center in direction of - arrow -.
