Trailer hitch, assembly overview

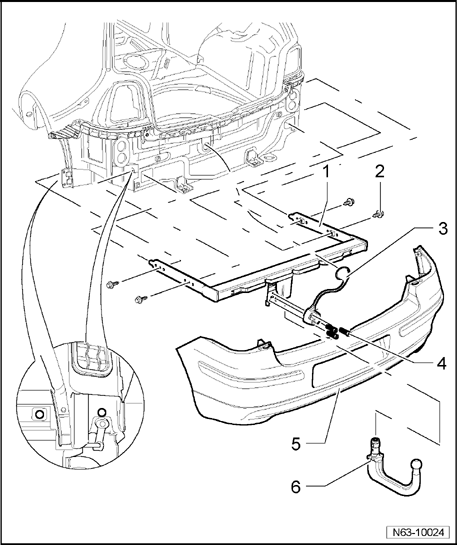

Fig 1: Exploded View Of Trailer Hitch

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Trailer hitch

• for Front Wheel Drive (FWD) vehicles
• for 4Motion vehicles
• Allocation Original parts distributor
• Removing and installing. Refer to Trailer hitch, removing and installing

2 - Bolt

• Qty. 4
• 60 Nm + ¹ / ₄ turns (90 ° ) turn
• Always replace bolts after loosening

3 - Power outlet

4 - Bolt

• Qty. 3
• 2.5 Nm

5 - Bumper cover

• Material - PP/EPDM
• Removing and installing. Refer to Rear bumper cover, removing and installing

6 - Ball head stud

• Removable

• Removing and installing operating instructions
