Adapter part (Golf R32), removing and installing

WARNING: This page is about a different variant/trim than selected.

Removing

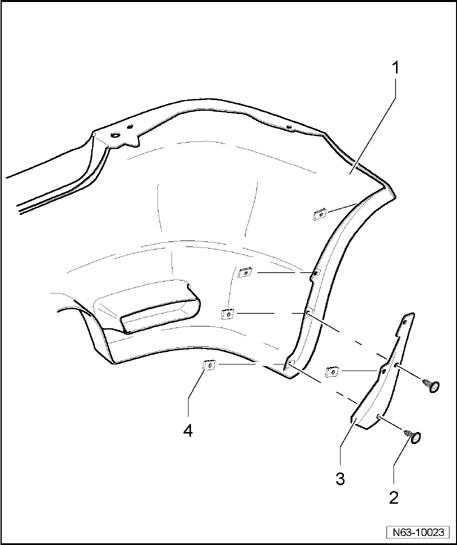

Fig 1: Identifying Adapter part (Golf R32), Bumper Cover & Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing bumper cover (Golf R32). Refer to Rear bumper cover (Golf R32), removing and installing .
Remove bolts - 2 -.
Remove adapter part - 3 -.

Installing

Installation is performed in the reverse order of removal.
