Center ventilation grid and air guide (Golf R32), assembly overview

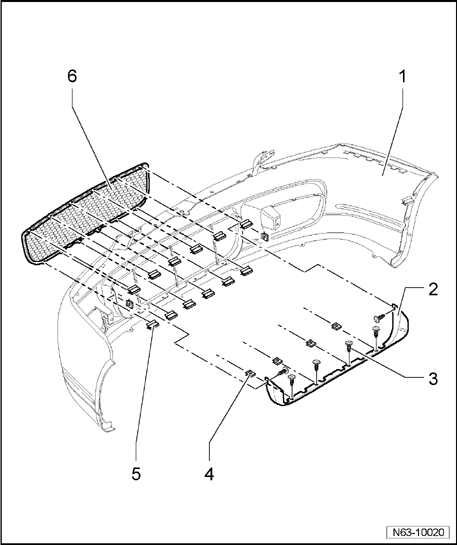

Fig 1: Exploded View Of Center Ventilation Grid And Air Guide (Golf R32)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bumper cover

• Material - PP/EPDM
• Removing. Refer to Bumper cover (Golf R32), removing and installing

2 - Air duct

3 - Bolt

• Qty. 6
• 1.5 Nm

4 - Speed nut

• Qty. 6

5 - Clip

• Qty. 12

6 - Center ventilation grid

• Removing

• Remove bumper cover.
• Remove clamps.
• Remove center ventilation grid.

• Installing:

Installation is performed in the reverse order of removal. Note the following:

• Damaged clamps must be replaced.
