Bumper carrier, assembly overview

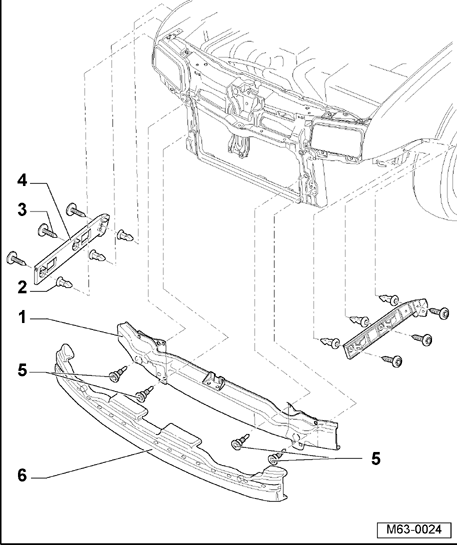

Fig 1: Exploded View Of Bumper Carrier

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bumper carrier

2 - Expanding nut

• Qty. 6

3 - Screw

• Qty. 6
• 1.5 Nm

4 - Guide piece

• To remove and install, pull out/slide in bumper cover parallel out of guide pieces (left and right sides)

5 - Bolt

• Qty. 4
• 8.5 Nm

6 - Damping

• Connected to bumper carrier - 1  -
