Adapter part (Golf R32), removing and installing

WARNING: This page is about a different variant/trim than selected.

Removing

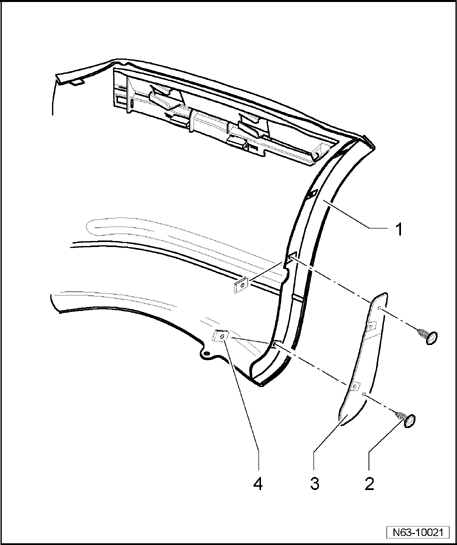

Fig 1: Identifying Bumper Cover, Adapter part (Golf R32), Nuts & Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove front wheel-housing liner. Refer to Wheelhousing liner, removing and installing .
Removing bumper cover (Golf R32). Refer to Bumper cover (Golf R32), removing and installing - 1 -.
Remove bolts - 2 -.
Remove adapter part - 3 -.

- 4 - Speed nut

Installing

Installation is performed in the reverse order of removal.
