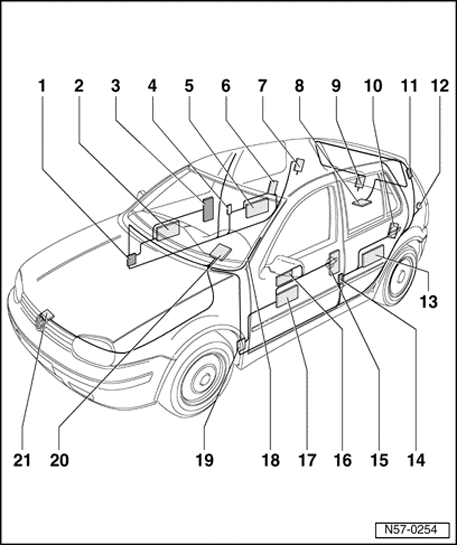

Comfort system and central locking system, assembly overview

1 - Coupling station

• Component location: Lower A-pillar, covered by footwell trim.

• Remove lower A-pillar trim. Refer to 70 - INTERIOR TRIM .

2 - Door control module, RF

• Only for comfort system
• Integrated in window regulator motor
• Removing

• Removing door trim. Refer to 70 - INTERIOR TRIM .
• Removing front carrier assembly. Refer to Carrier assembly, removing and installing  .
• Remove window regulator motor. Refer to Window regulator motor or carrier assembly with window regulator, removing and installing  .

3 - Door lock, RF

• Door lock is secured to carrier assembly
• Electrical central locking system is integrated in door lock module
• Removing

• Removing door trim. Refer to 70 - INTERIOR TRIM .
• Removing front carrier assembly. Refer to Carrier assembly, removing and installing  .
• Remove door lock. Refer to Door lock, removing and installing  .

4 - Coupling station

• Component location: B-pillar

• Remove lower B-pillar trim. Refer to 70 - INTERIOR TRIM .

5 - Door control module, RR

• Only for comfort system
• Integrated in window regulator motor
• Removing

• Removing door trim. Refer to 70 - INTERIOR TRIM .
• Remove window regulator motor. Refer to Window regulator motor or carrier assembly with window regulator, removing and installing  .

6 - Door lock, RR

• Door lock is secured to carrier assembly
• Electrical central locking system is integrated in door lock module
• Removing

• Removing door trim. Refer to 70 - INTERIOR TRIM .
• Remove door lock. Refer to Door lock, removing and installing

7 - Motor for fuel tank lid unlock V155

• Component location: under C-pillar trim
• To remove, luggage compartment trim up to wheel-housing must be removed. Refer to 70 - INTERIOR TRIM .
• Can be removed using Socket wrench T10010

8 - Rear lid lock

• Screwed onto lid
• Removing

• Remove rear lid trim. Refer to 70 - INTERIOR TRIM
• Remove lid lock.

9 - Rear lid actuator

• Installed onto lid
• Can be removed using Socket wrench T10010

10 - Door lock, LR

• Door lock is secured to carrier assembly
• Electrical central locking system is integrated in door lock module
• Removing

• Removing door trim. Refer to 70 - INTERIOR TRIM .
• Remove door lock. Refer to Door lock, removing and installing  .

11 - Coupling station

• Component location: in area of rear roof crossmember, covered by roof trim

• Removing roof trim. Refer to 70 - INTERIOR TRIM .

12 - Anti-theft alarm horn

• Component location: in area of C-pillar, covered by C-pillar trim

13 - Door control module, LR

• Only for comfort system
• Integrated in window regulator motor
• Removing

• Removing door trim. Refer to 70 - INTERIOR TRIM .
• Removing rear carrier assembly. Refer to Carrier assembly, rear door window and quarter window, removing and installing  .
• Remove window regulator motor. Refer to Window regulator motor or carrier assembly with window regulator, removing and installing  .

14 - Coupling station

• Component location: B-pillar

• Remove lower B-pillar trim. Refer to 70 - INTERIOR TRIM .

15 - Door lock, LF

• Door lock is secured to carrier assembly
• Electrical central locking system is integrated in door lock module
• Removing

• Removing door trim. Refer to 70 - INTERIOR TRIM .
• Removing front carrier assembly. Refer to Carrier assembly, removing and installing  .
• Remove door lock. Refer to Door lock, removing and installing  .

16 - Operating unit

• Installed in door trim
• Removing

• Removing door trim. Refer to 70 - INTERIOR TRIM .

17 - Door control module, LF

• Only for comfort system
• Integrated in window regulator motor
• Removing

• Removing door trim. Refer to 70 - INTERIOR TRIM .
• Removing front carrier assembly. Refer to Carrier assembly, removing and installing  .
• Remove window regulator motor. Refer to Window regulator motor or carrier assembly with window regulator, removing and installing  .

18 - Antenna for remote control

• Under left, A-pillar trim
• Removing

• Remove A-pillar trim. Refer to 70 - INTERIOR TRIM

19 - Coupling station

• Component location: Lower A-pillar, covered by footwell trim.

• Remove lower left A-pillar trim. Refer to 70 - INTERIOR TRIM .

20 - Central module

• Bolted on under instrument cluster with bracket at steering column
• To remove, lower steering column trim must be removed beforehand. Refer to 68 - INTERIOR EQUIPMENT

21 - Hood lock

• Contact switch for ATWS
• Component location: in lock carrier

• Removing hood lid lock. Refer to Hood lock, removing and installing
