Fuel flap unit, removing and installing (Golf)

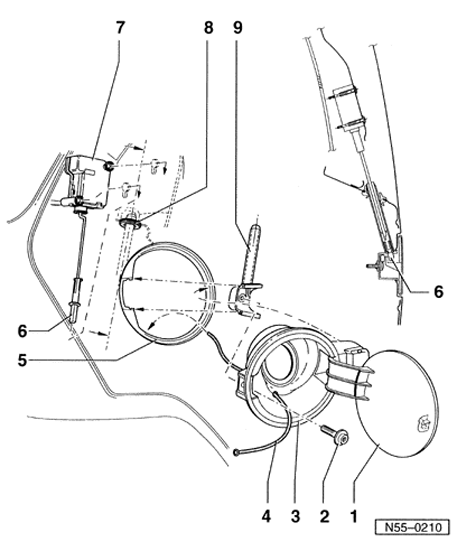

Fig 1: Exploded View Of Fuel Flap Unit (Golf)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Tank flap unit

• Removing

• Remove fuel tank cap.
• Press back release rod by operating remote unlocking.
• Remove bolt.
• Remove rubber part of tank filler flange and swivel out fuel flap unit from side panel.

• Installing:

Assembly piece and actuator element are installed.

• Install fuel flap unit (rubber part rolled up) with hinge side first.
• Bolt in fuel flap unit and assembly piece.

2 - Screw

3 - Tank flap cup

• Removing and installing (can only be removed as part of fuel flap unit)
• To remove fuel filler cap, press out securing pin in fuel flap unit

4 - Drain hose

5 - Side panel

6 - Release rod

7 - Actuator for fuel filler flap

8 - Seal

9 - Assembly piece

• Inserted into side panel

10 - Rubber piece
