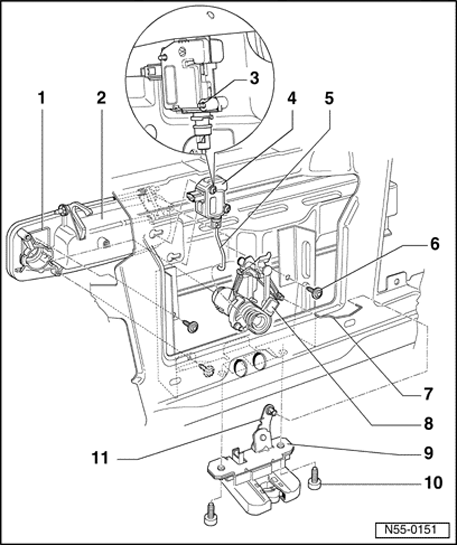

Rear lid lock, removing and installing: Notes

1 - Locking clamp

2 - Handle

• Removing

• Unclip lid trim (handle is secured with a bolt).
• Unclip pull lever , pry out locking clamp and remove lock cylinder housing from handle.
• Disconnect connector for luggage compartment light and unclip operating rod for central locking system if necessary.
• Remove Torx bolts and remove handle from lid.

3 - Actuator securing bolt

• Loosen and tighten using Socket wrench T10010

4 - Central locking actuator

• Removing

• Disconnect connector from actuator.
• Remove actuator using Socket wrench T10010 and remove from lid.

5 - Pull lever

6 - Torx screw

7 - Operating rod

8 - Lock cylinder housing

• Removing

• Unclip lid trim (handle is secured with a bolt).
• Unclip pull lever , pry out locking clamp and remove lock cylinder housing from handle.

9 - Lock

• Removing

• Remove lid trim. Refer to 70 - INTERIOR TRIM .
• Disconnect connector from lock.
• Unclip operating rod , remove bolt and remove lock from lid.

• install - only with striker catch in detent

10 - Oval-head machine screw

• 20 Nm

11 - Actuator lever
