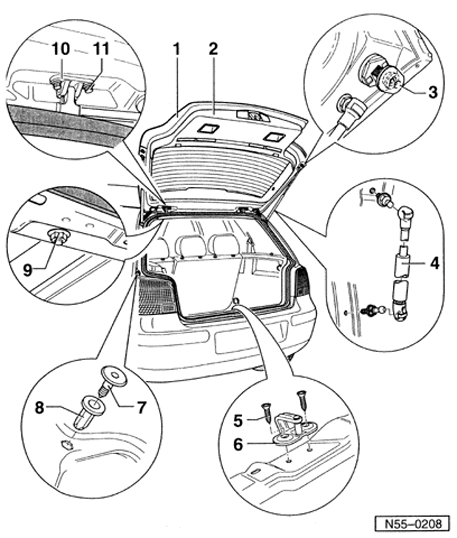

Rear lid (Golf), assembly overview
WARNING: This page is about a different variant/trim than selected.
1 - Rear lid
- Adjusting. Refer to Rear lid, adjusting
- Gap dimension Body panel gaps; Body, rear
2 - Trim
- Removing and installing. Refer to 70 - INTERIOR TRIM
3 - Rubber stop
- Adjusting. Refer to Rear lid, adjusting
4 - Gas-filled strut
- Removing and installing. Refer to Gas-filled strut, removing
- Venting gas. Refer to Releasing gas from gas-filled strut
5 - Bolt
- 22 Nm
6 - Lock plate
- Adjusting - within elongated holes
- Gap dimension Body panel gaps; Body, rear
7 - Cap
8 - Blind nut
9 - Hex nut
- 24 Nm
10 - Hinge
11 - Bolt
- 10 Nm
