Bowden cable, removing and installing

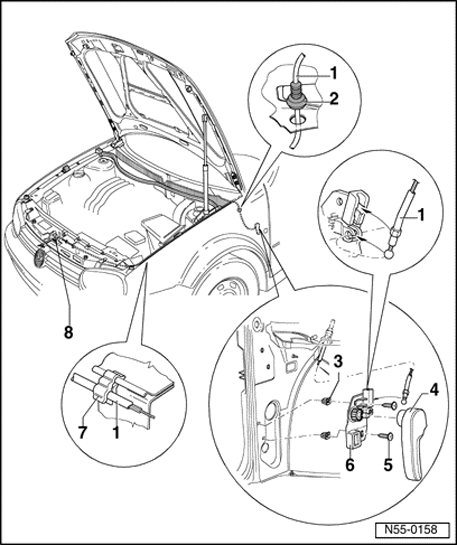

Fig 1: Identifying Bowden Cable

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bowden cable

• Replace - remove operating lever. Refer to Release lever, removing and installing

2 - Sealing grommet

3 - Expanding nut

4 - Actuating lever

• Removing and installing. Refer to Release lever, removing and installing

5 - Bolt

6 - Mounting bracket

• Cable engaged

7 - Bracket for Bowden cable

8 - Hood lock

• Removing and installing. Refer to Hood lock, assembly overview
