Fender gaps

WARNING: This page is about a different variant/trim than selected.

Distance between fenders

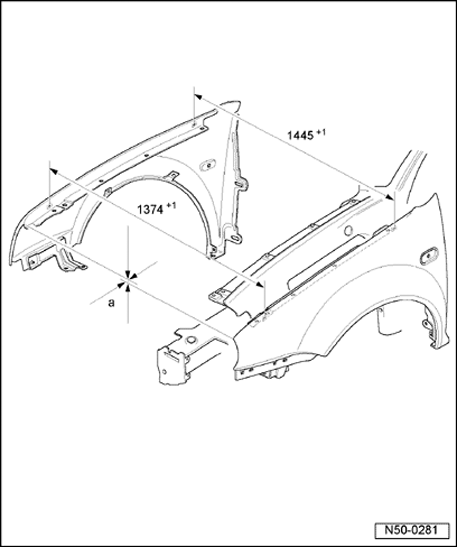

Fig 1: Identifying Fender Gaps
GW00003444Courtesy of VOLKSWAGEN UNITED STATES, INC.

Offset between horizontal and vertical fender points:

- a - = 0-2 mm
