Cross member for steering column, assembly overview

WARNING: This page is about a different variant/trim than selected.

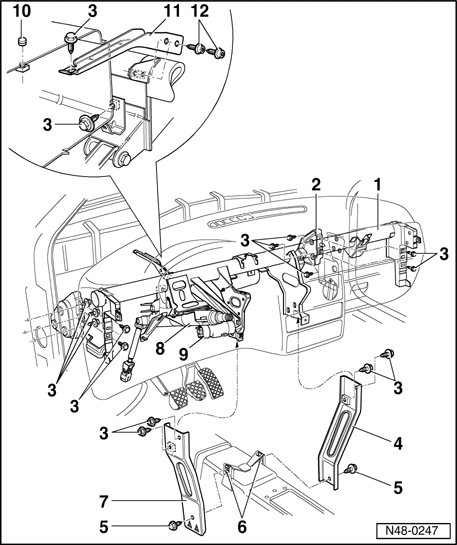

Fig 1: Exploded View Of Cross Member For Steering Column

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Steering column cross member

2 - Adjustment bracket

3 - Hex head bolt, 25 Nm

4 - Strut, right

5 - Hex head bolt

6 - Speed nut

7 - Strut, left

8 - Steering column

9 - Steering lock housing

10 - Plug

11 - Bulkhead reinforcement

12 - Multiple point socket head bolt, 10 Nm
