Tie rod, removal and installation: Notes

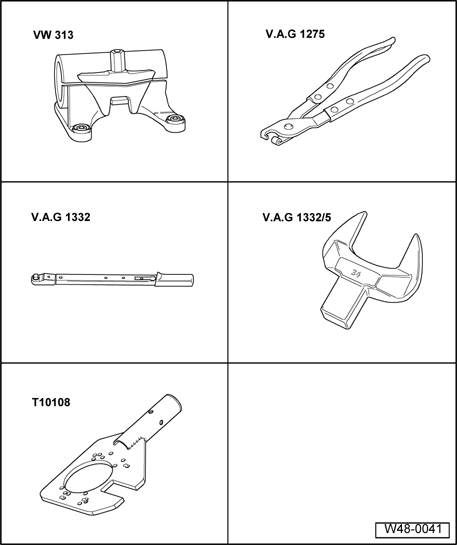

Fig 1: Identifying Special Tools - Tie Rod, Removal And Installation

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Holding Fixture VW 313
• Hose Clamp Pliers V.A.G 1275
• Torque Wrench 40-200Nm V.A.G 1332
• Open jaw insert, 34 mm V.A.G 1332/5

• Transmission support T10108
