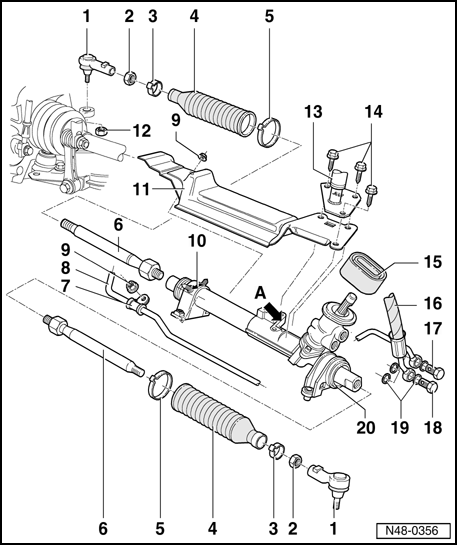

Power steering gear left hand drive, assembly overview
Power steering gear is not serviceable. If complaints are received, determine cause with the help of pressure tests, leak test and Guided fault finding. If a malfunction exists replace power steering gear.
- Replace self-locking nuts and bolts. Welding and straightening work on steering components is not permitted.
- Only use steering gear grease AOF 063 000 04 to grease the rack
- Replace self-locking nuts and bolts.
- Type of fluid: Hydraulic fluid G 002 000
- System oil capacity: 0.7 to 0.9 l
1 - Tie rod end
Modification:
Modified tie rod ball joints → Modified tie rod ball joints
- Is installed from below on R32
- Application see Parts catalog
- With the R32, after pressing out the tie rod end, press the socket back into tie rod arm For R32 under Power steering gear, removing and installing
2 - Hex nut, 50 Nm
3 - Clamp
- Replace
- Tightening
4 - Boot
- Must not be twisted when adjusting rod
- Remove steering gear to replace
5 - Clamp
- Replace
- Tightening
6 - Tie rod
- 75 Nm
Modification:
Modified tie rods → Modified tie rods
- Removing and installing → Tie rod, removal and installation
- Replacement parts are supplied preset
- Vehicle alignment → Wheel alignment
- Different versions
- Application See Parts Catalog
7 - Clamp with rubber sleeve
8 - Return line
9 - Hex nut, 22 Nm
10 - Clamp with rubber mounting
Installed location
- Arrow on clamp points forward
- Replace if threads in welded nut are damaged
11 - Heat shield
12 - Self-locking hex nut, 45 Nm
13 - Selector mechanism bearing bracket
14 - Hex head bolt, 24 Nm
15 - Gasket
- Observe installation instructions !
16 - Hydraulic line
17 - Banjo bolt, 45 Nm
M 16 x 1.5
18 - Banjo bolt, 38 Nm
M 14 x 1.5
19 - Sealing rings
- Replace
20 - Steering gear
- Removing and installing → Power steering gear, removing and installing
