Reservoir, disassembling and assembling

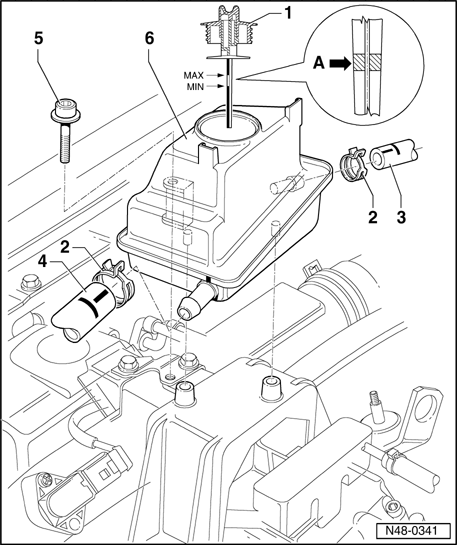

Fig 1: Exploded View Of Power Steering Reservoir

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cap with dip stick

• Oil level: between min. and max. marks; Engine temperature approx. 50 C
• Arrow A: oil level with engine cold
• With engine cold, oil level must not rise above Min. marking
• Check oil level with cap screw on

• Open cap with e.g. a bar

2 - Hose clamp

3 - Return hose

4 - Intake hose

5 - Internal hex head bolt, 10 Nm

6 - Reservoir
